Front Rise |
3.11 in |
79 mm |
|
Front Fall |
2.24 in |
57 mm |
|
Front Shift |
1.62 in Each Way |
41.2 mm Each Way |
|
Front Swing |
13 degrees both ways |
13 degrees both ways |
|
Front Tilt |
40 Degrees Forward / 90 Degrees Back |
40 Degrees Forward / 90 Degrees Back |
|
Rear Swing |
NONE |
NONE |
|
Rear Tilt |
90 Degrees Forward / 40 Degrees Back |
90 Degrees Forward / 40 Degrees Back |
|
Rear Shift |
NONE |
NONE |
|
Minimum Bellows |
2.74 in |
69.5 mm |
|
Maximum Bellows |
34 in |
864 mm |
|
Weight |
9.13 lbs. |
4.14 Kg |
|

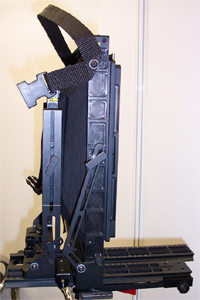

Folded Dimensions |
13.5in x 12.5in x 4.8in |
343mm x 318mm x 121mm |
Rear focus only, and it has a fresnel screen. This camera is designed to accept Sinar©, Horseman© lens boards. Folding instructions can be found here.
 |
 |
 |
